縫中設備 切紙機 膠裝機
普通會員
產品價格¥3200.00元/臺
產品品牌未填
最小起訂≥1 臺
供貨總量2000000 臺
發貨期限自買家付款之日起 15 天內發貨
瀏覽次數350
企業旺鋪http://www.haocaigui.cn/index.php?homepage=15811899752a
更新日期2024-11-13 09:52
品牌: |
未填 |
所在地: |
廣東 廣州市 |
起訂: |
≥1 臺 |
供貨總量: |
2000000 臺 |
有效期至: |
長期有效 |



尺寸:530×380×340mm
重量:30kg
粉筆規格:大頭X小頭X長:10 mmX8mmX75mm
產量:0.2~0.4萬只/小時,
模具規格:400只/模 一個人操作
Specifications:
1.free of dust
2.great treatment ability
3.wearable- resistant and longevity/durable

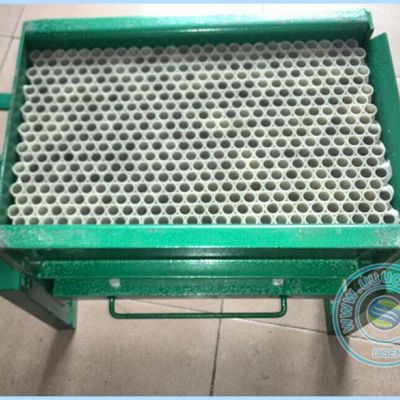

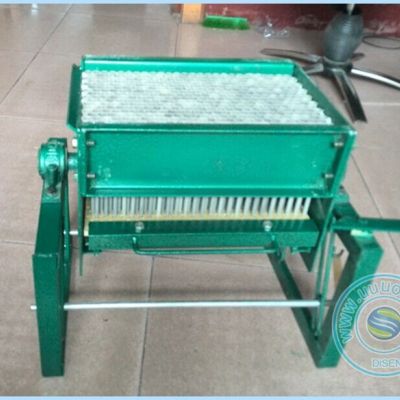

400-1 chalk machine has one mold, manual mixing.
A person can operate three machines, packaging needs of a person.
Model: 400-1
Production: 2000-4000 pieces/hour
Mold size: 400 pieces/per mold
Chalk size: 10 mm*8 mm* 75 mm
The machine size: 530mm x 380 mmx 340mm
Weight: 35 KG

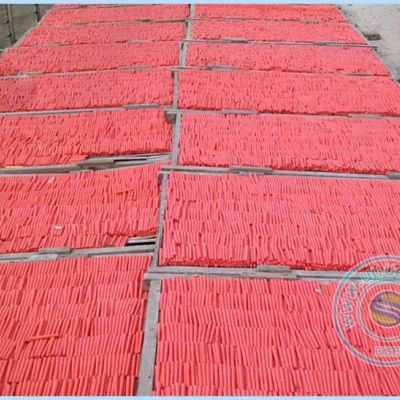

Chalk production process
1. Mold evenly brush oil, brush back and forth with a wide brush, brush the new mold should be more oil.
2. The mold plate moving up and down a few times, the screw top and the bottom plate comes into contact.
3. Turn on the water, turn on the water with a movable foot switch pedal to pedal in the end, until the water in the water last. (First mold first feed, add water)
4. Addition, the quantitative good gypsum powder into the mixing bucket.
5. Mixing, stirring for 10-20 seconds to start the motor.
6. Put the pulp, put a good brush oil stirred to die bottom of the barrel, hit the switch to open the pulp slurry was stirred well into the mold until the stream last.
7. Calibrating with a plastic scraper to scrape the pulp mold hole, scrape out the remaining pulp mold mouth gelling.
8. A mold, a new mold die not too late. Chalk can feel a little hard to top 2-5 mm, 1 to 2 minutes over again ejection.
