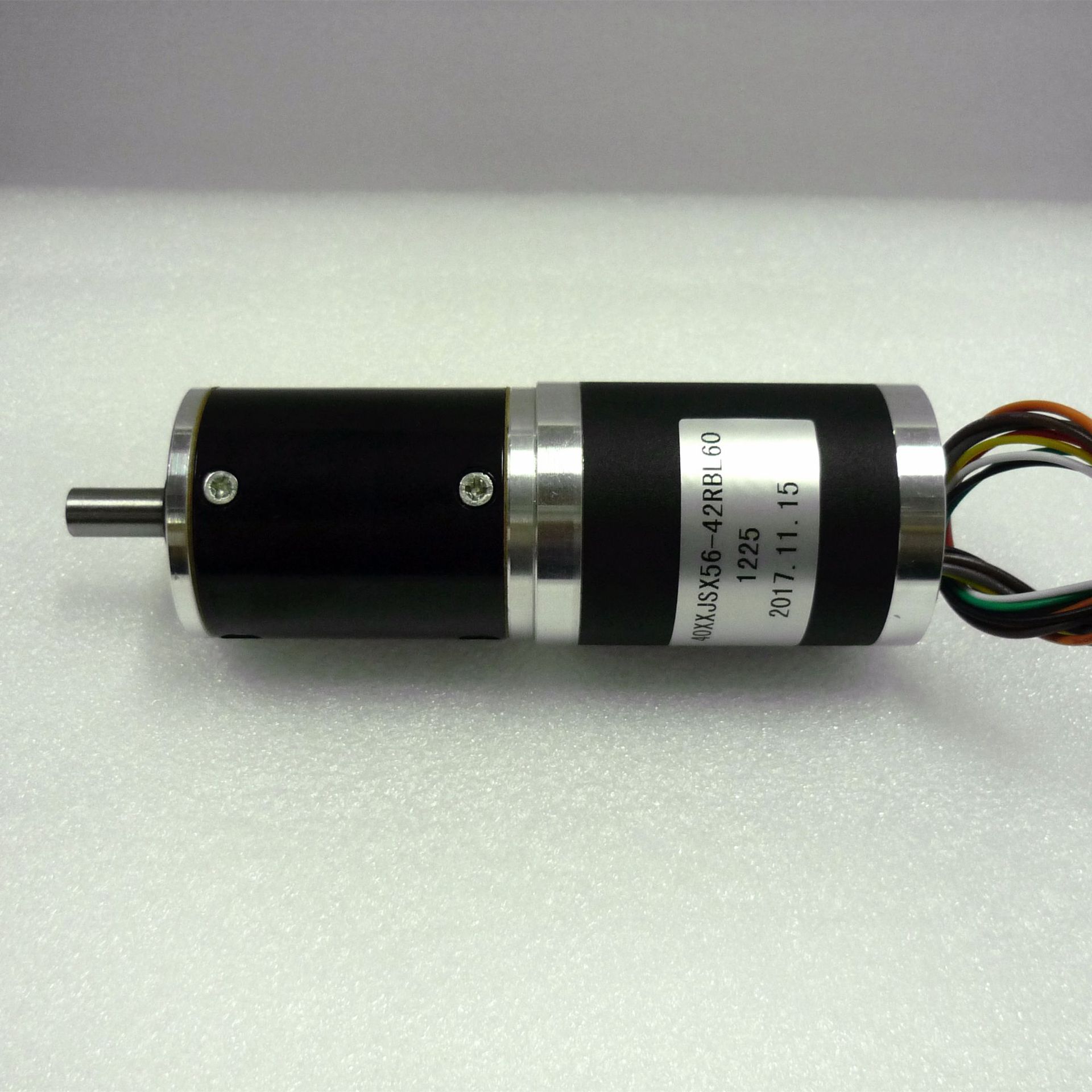

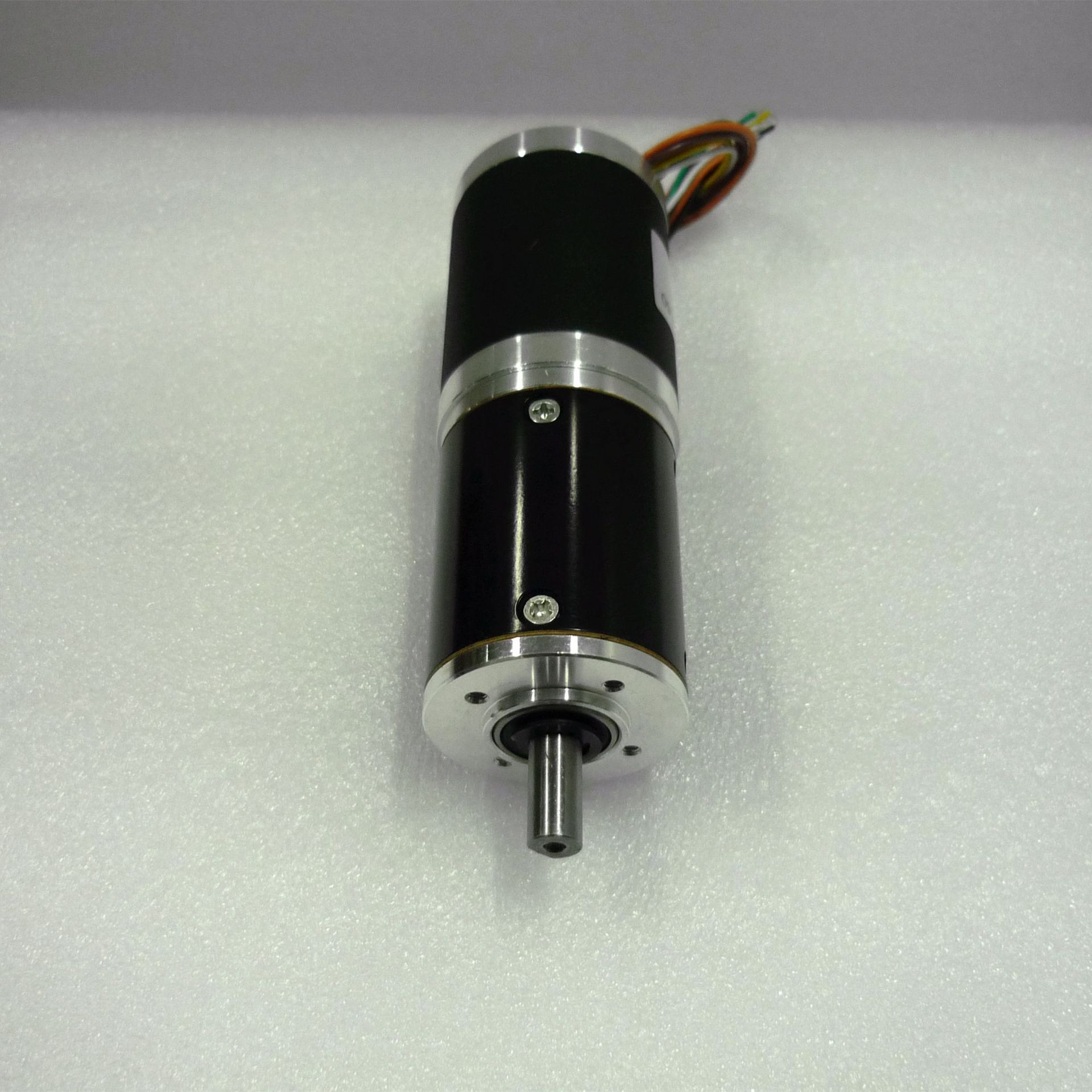

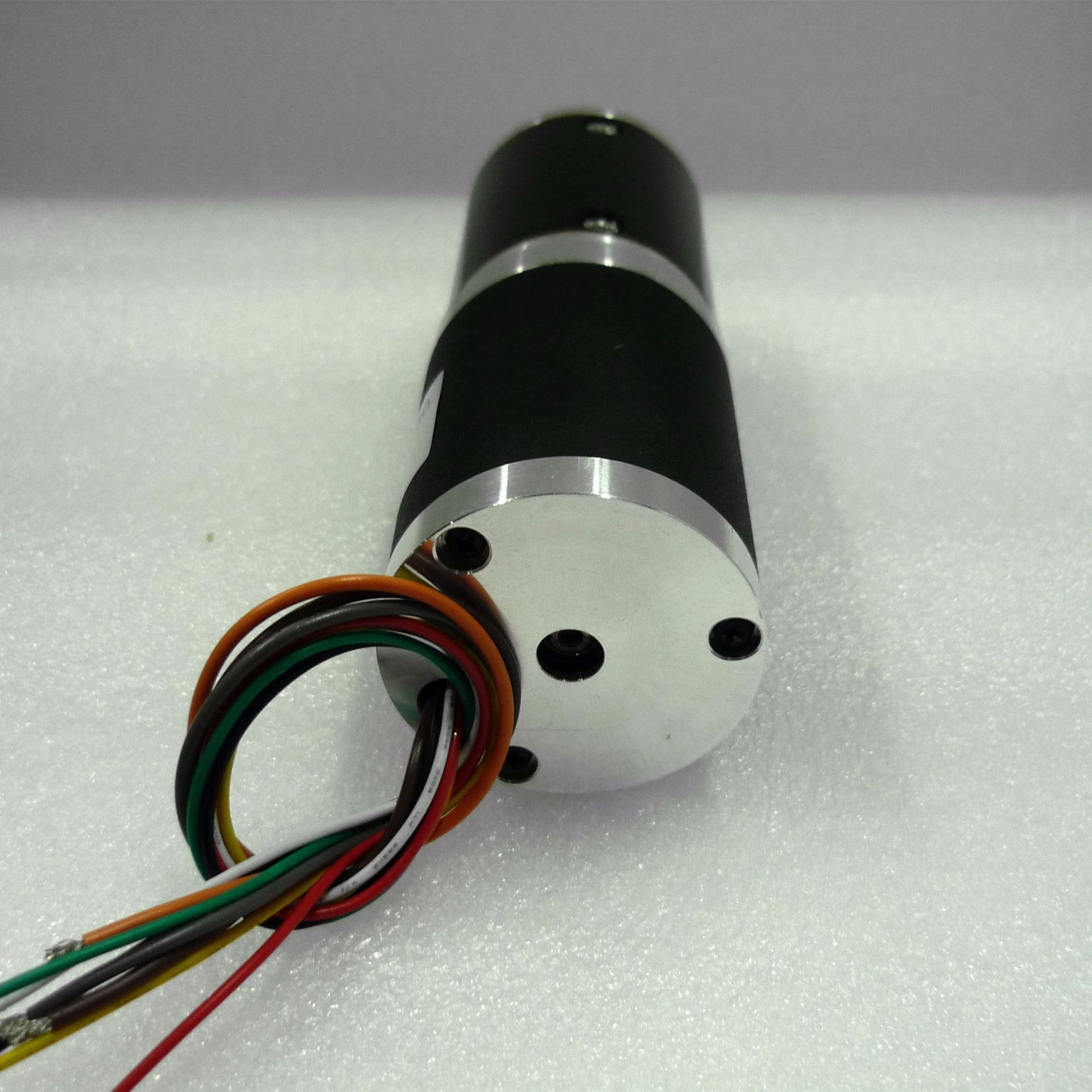

產品圖片Real Shoot
技術參數Technical Data
|
型號 Model |
減速箱 Gear box |
電機 Motor |
||||||||
|
減速比 Reduction ratio |
額定 轉矩 Rated torque(kgf.cm) |
堵轉 轉矩 Stall torque(kgf.cm) |
空載 轉速 No-load speed (rpm) |
額定 轉速 Rated speed(rpm) |
空載 電流 No-load current (mA) |
額定 電流 Rated current (mA) |
堵轉 電流 Stall current (mA) |
額定電壓 Rated voltage (V) |
空載 轉速 no-load speed (rpm) |
|
|
40XXJSX3.8-42RBL60 |
1:3.8 |
3.8 |
12 |
1300 |
690 |
320 |
2000 |
6700 |
24 |
5000 |
|
40XXJSX4.9-42RBL60 |
1:4.9 |
|
|
|
|
|
|
|
|
|
|
40XXJSX9.9-42RBL85 |
1:9.9 |
20.8 |
47.3 |
404 |
212 |
150 |
3000 |
8000 |
24 |
4000 |
|
40XXJSX15-42RBL60 |
1:14.6 |
|
|
|
|
|
|
|
|
|
|
40XXJSX19-42RBL60 |
1:18.6 |
|
|
|
|
|
|
|
|
|
|
40XXJSX24-42RBL60 |
1:23.8 |
|
|
|
|
|
|
|
|
|
|
40XXJSX56-42RBL60 |
1:55.7 |
|
|
|
|
|
|
|
|
|
|
40XXJSX71 |
1:71 |
54.2 |
|
56 |
/ |
260 |
2000 |
|
24 |
5000 |
|
40XXJSX91 |
1:90.7 |
|
|
|
|
|
|
|
|
|
|
40XXJSX116 |
1:115.9 |
|
|
|
|
|
|
|
|
|
外形圖Dimension
