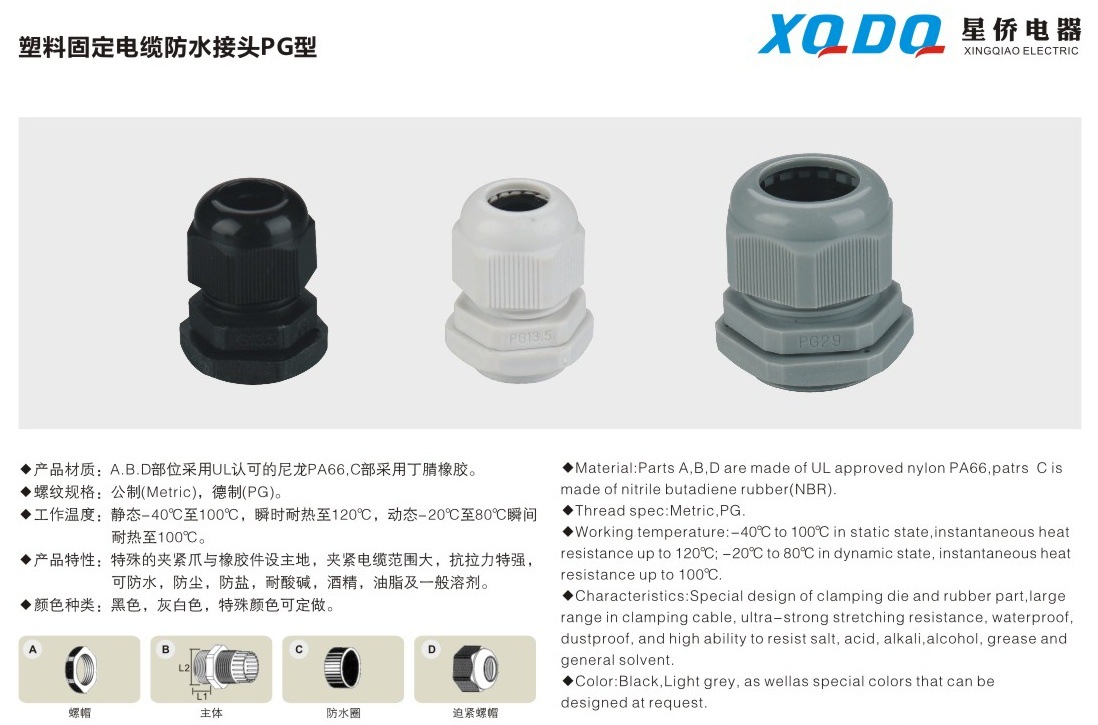

PG型
|
||||||
|
產品型號 Model |
適用電纜 Cable Range（mm） |
螺紋外徑 Thead O.D. L2（mm） |
螺紋長度 Thead Length L1（mm） |
扳手直徑 Spanner Size A&E（mm） |
包裝數量/PCS |
購買鏈接
|
|
PG7
|
3-6.5
|
12.5
|
9
|
18/16
|
100/6000
|
→點擊鏈接
|
|
PG9
|
4-8
|
15.2
|
9
|
22/19
|
100/4000
|
→點擊鏈接
|
|
PG11
|
5-10
|
18.6
|
9
|
24/22
|
100/2500
|
→點擊鏈接
|
|
PG13.5
|
6-12
|
20.4
|
10
|
27/24
|
100/2000
|
→點擊鏈接
|
|
PG16
|
10-14
|
22.5
|
10
|
30/27
|
100/1700
|
→點擊鏈接
|
|
PG19
|
12-15
|
24
|
10
|
30/28
|
100/1600
|
→點擊鏈接
|
|
PG21
|
13-18
|
28.3
|
12
|
35/33
|
100/1000
|
→點擊鏈接
|
|
PG25
|
16-21
|
30
|
12
|
37/35
|
100/800
|
→點擊鏈接
|
|
PG29
|
18-25
|
37
|
12
|
45/42
|
50/500
|
→點擊鏈接
|
|
PG36
|
22-32
|
47
|
15
|
58/52
|
20/360
|
→點擊鏈接
|
|
PG42
|
32-38
|
54
|
18
|
62/58
|
20/220
|
→點擊鏈接
|
|
PG48
|
37-44
|
59.3
|
18
|
70/64
|
20/240
|
→點擊鏈接
|
|
PG63
|
42-50
|
71
|
30
|
83/77
|
10/100
|
→點擊鏈接
|
|
M型
|
||||||
|
M12*1.5
|
3-6.5
|
12
|
9
|
18/16
|
100/6000
|
→點擊鏈接
|
|
M16*1.5
|
4-8
|
16
|
9
|
22/19
|
100/4000
|
→點擊鏈接
|
|
M18*1.5
|
5-10
|
18
|
9
|
24/22
|
100/2500
|
→點擊鏈接
|
|
M20*1.5
|
6-12
|
20
|
10
|
27/24
|
100/2000
|
→點擊鏈接
|
|
M22*1.5
|
10-14
|
22
|
10
|
30/27
|
100/1700
|
→點擊鏈接
|
|
M24*1.5
|
12-15
|
24
|
10
|
30/28
|
100/1600
|
→點擊鏈接
|
|
M25*1.5
|
13-18
|
25
|
11
|
31/28
|
100/1000
|
→點擊鏈接
|
|
M27*1.5
|
13-18
|
27
|
12
|
35/33
|
100/1000
|
→點擊鏈接
|
|
M30*1.5
|
16-21
|
30
|
12
|
37/35
|
100/800
|
→點擊鏈接
|
|
M32*1.5
|
16-21
|
32
|
12
|
38/35
|
100/800
|
→點擊鏈接
|
|
M36*1.5
|
18-25
|
36
|
12
|
45/42
|
50/500
|
→點擊鏈接
|
|
M40*1.5
|
23-32
|
40
|
15
|
52/52
|
20/360
|
→點擊鏈接
|
|
M50*1.5
|
32-38
|
50
|
18
|
62/58
|
20/220
|
→點擊鏈接
|
|
M63*1.5
|
37-44
|
63
|
18
|
72/64
|
20/240
|
→點擊鏈接
|
|
M71*1.5
|
42-50
|
71
|
28.9
|
83/77
|
/
|
→點擊鏈接
|
|
M80*2
|
55-62
|
80
|
/
|
90
|
/
|
→點擊鏈接
|
|
M88*2
|
56-66
|
88
|
/
|
100
|
/
|
→點擊鏈接
|
|
M90*2
|
66-77
|
90
|
/
|
100
|
/
|
→點擊鏈接
|
樂清市星僑電器有限公司是專業生產電纜防水接頭（PG型、M型、MG型、BG型、FG型）、塑料堵賽件（PG型、M型）、金屬電纜接頭、接線端子、連接器等產品及研發生產銷售一體化的民營企業，公司貫徹ISO9001：2008質量體系下，產品相繼通過了CE認證。本公司本著“以科技求發展、以質量求生存”的原則。竭誠歡迎各界人士洽談合作，共創事業的繁榮和發展！
