HF1716 17*23*16mm
HF1416 14*20*16mm
HF1616 16*22*16mm
HF1816 18*24*16mm
HF2016 20*26*16mm
單向滾針軸承現貨直銷
HF和HFL型沖壓外圈滾針離合器是一種外星輪式離合器，滾針是鎖緊元件。它由薄壁沖壓外圈、保持架、鑲嵌于保持架中的異形彈簧和裝入保持架中的鎖緊元件滾針組成的。異形彈簧使?jié)L針始終貼緊精度。常開于印刷機械、包裝機械、紡織機械、食品機械、家用電器、輕工機械及測試設備等。常用轉矩為0.34N.m-121N.m，適用于高轉速，一般為3900-34000r/min。選用這種離合器用戶自己配用的軸的硬度要達到HRC58-62，而且尺寸精度和形位公差要達到要求。
|
軸徑 |
型號Type |
重量 |
外形尺寸 |
傳動力矩 |
極限轉速 |
|||||||
|
現行的 |
國外廠商 |
Fw |
D |
C |
|
N |
NA |
|||||
|
INA |
NSK |
|
|
|
|
(rpm) |
||||||
|
HF系列 |
||||||||||||
|
3 |
HF0306 |
HF0306 |
FC-3 |
1 |
3 |
6.5 |
6 |
0.3 |
35000 |
15000 |
||
|
4 |
HF0406 |
HF0406 |
FC-4 |
1 |
4 |
8 |
6 |
0.34 |
34000 |
14000 |
||
|
6 |
HF0612 |
HF0612 |
FCS-6 |
3 |
6 |
10 |
12 |
1.76 |
23000 |
13000 |
||
|
8 |
HF0812 |
HF0812 |
--- |
3.5 |
8 |
12 |
12 |
3.15 |
17000 |
12000 |
||
|
10 |
HF1012 |
HF1012 |
FCL-10k |
4 |
10 |
14 |
12 |
5.3 |
14000 |
11000 |
||
|
12 |
HF1216 |
HF1216 |
FC-12 |
11.6 |
12 |
18 |
16 |
12.2 |
11000 |
8000 |
||
|
14 |
HF1416 |
HF1416 |
--- |
13 |
14 |
20 |
16 |
17.3 |
9500 |
8000 |
||
|
16 |
HF1616 |
HF1616 |
FC-6 |
14 |
16 |
22 |
16 |
20.5 |
8500 |
7500 |
||
|
18 |
HF1816 |
HF1816 |
--- |
15.5 |
18 |
24 |
16 |
24.1 |
7500 |
7500 |
||
|
20 |
HF2016 |
HF2016 |
FC-20 |
17 |
20 |
26 |
16 |
28.5 |
7000 |
6500 |
||
|
25 |
HF2520 |
HF2520 |
FC-25 |
30.9 |
25 |
32 |
20 |
66 |
5500 |
5500 |
||
|
30 |
HF3020 |
HF3020 |
FC-30 |
36 |
30 |
37 |
20 |
90 |
4500 |
4500 |
||
|
35 |
HF3520 |
HF3520 |
FCS-35 |
40 |
35 |
40 |
20 |
121 |
3900 |
3900 |
||
|
HFL系列 |
||||||||||||
|
|
HFL0822 |
HFL0822 |
FCBL-8k |
6.3 |
8 |
12 |
22 |
3.15 |
17000 |
12000 |
||
|
|
HFL1022 |
HFL1022 |
--- |
7.4 |
10 |
14 |
22 |
5.3 |
14000 |
11000 |
||
|
|
HFL1226 |
HFL1226 |
FCB-12 |
18 |
12 |
18 |
26 |
12.2 |
11000 |
8000 |
||
|
|
HFL1426 |
HFL1426 |
--- |
20.3 |
14 |
20 |
26 |
17.3 |
9500 |
8000 |
||
|
|
HFL1626 |
HFL1626 |
FCB-16 |
22 |
16 |
22 |
26 |
20.5 |
8500 |
7500 |
||
|
|
HFL1826 |
HFL1826 |
--- |
24.4 |
18 |
24 |
26 |
24.1 |
7500 |
7500 |
||
|
|
HFL2026 |
HFL2026 |
FCB-20 |
27 |
20 |
26 |
26 |
28.5 |
7000 |
6500 |
||
|
|
HFL2530 |
HFL2530 |
FCB-25 |
44 |
25 |
32 |
30 |
66 |
5500 |
5500 |
||
|
|
HFL3030 |
HFL3030 |
FCB-30 |
51 |
30 |
37 |
30 |
90 |
4500 |
4500 |
||
|
|
HFL3530 |
HFL3530 |
--- |
58 |
35 |
42 |
30 |
121 |
3900 |
3900
|
||

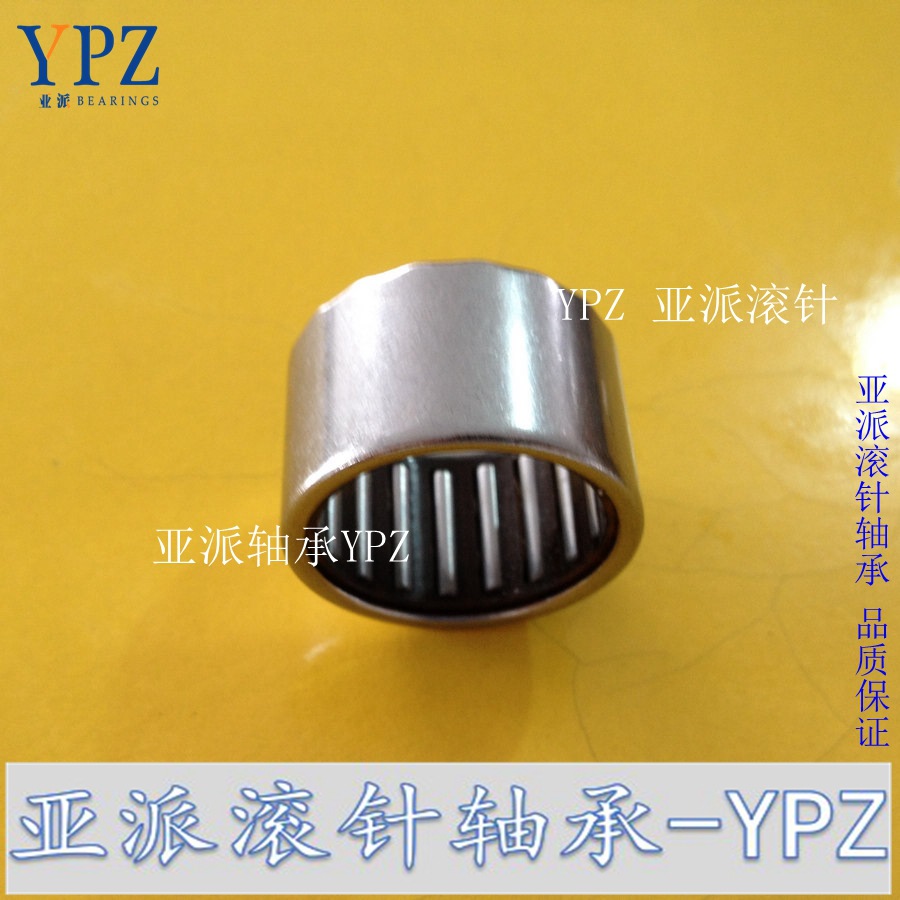

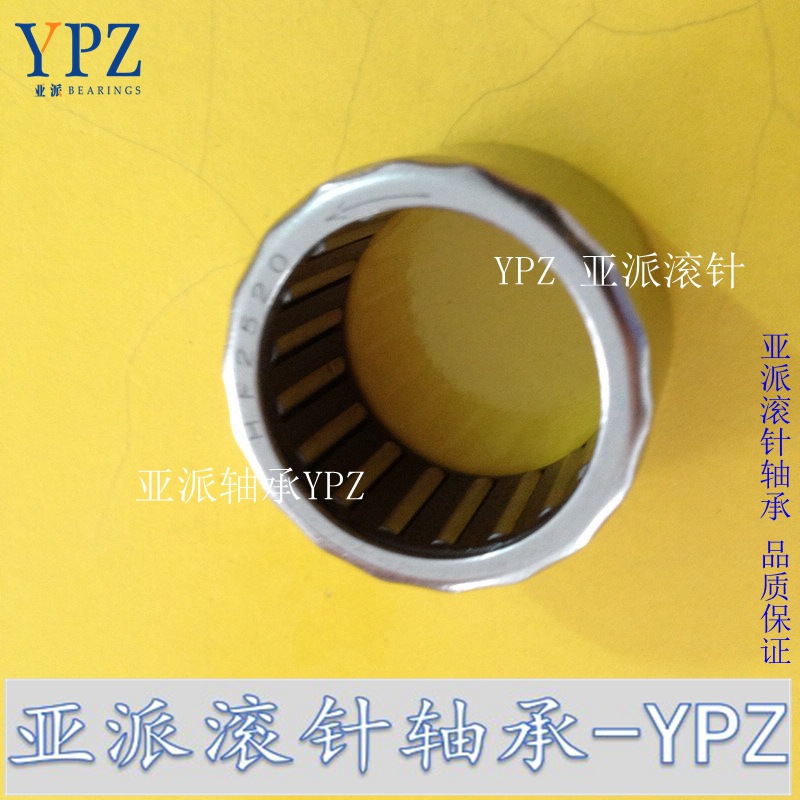

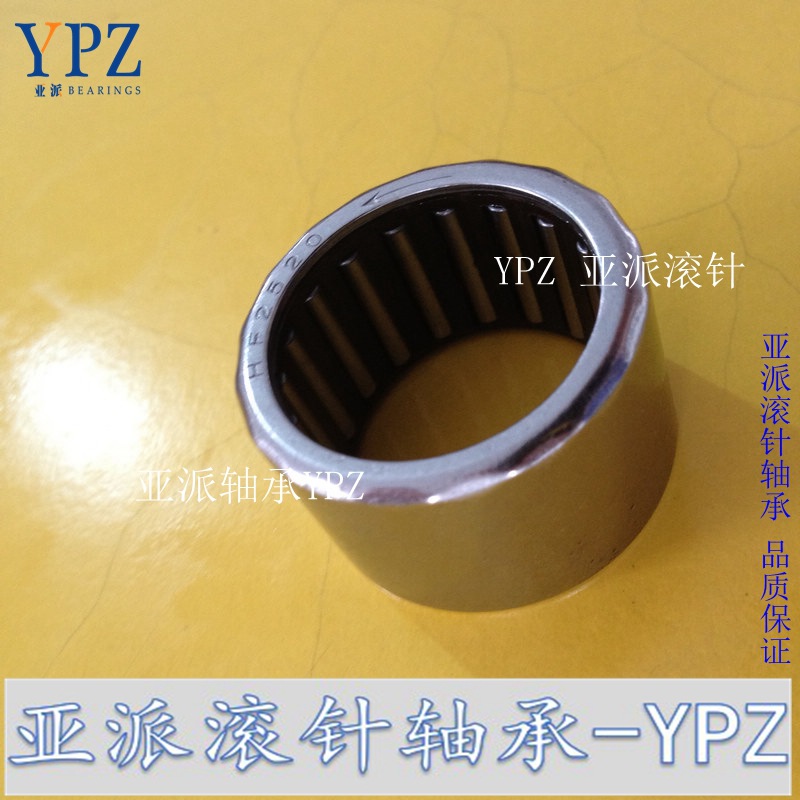

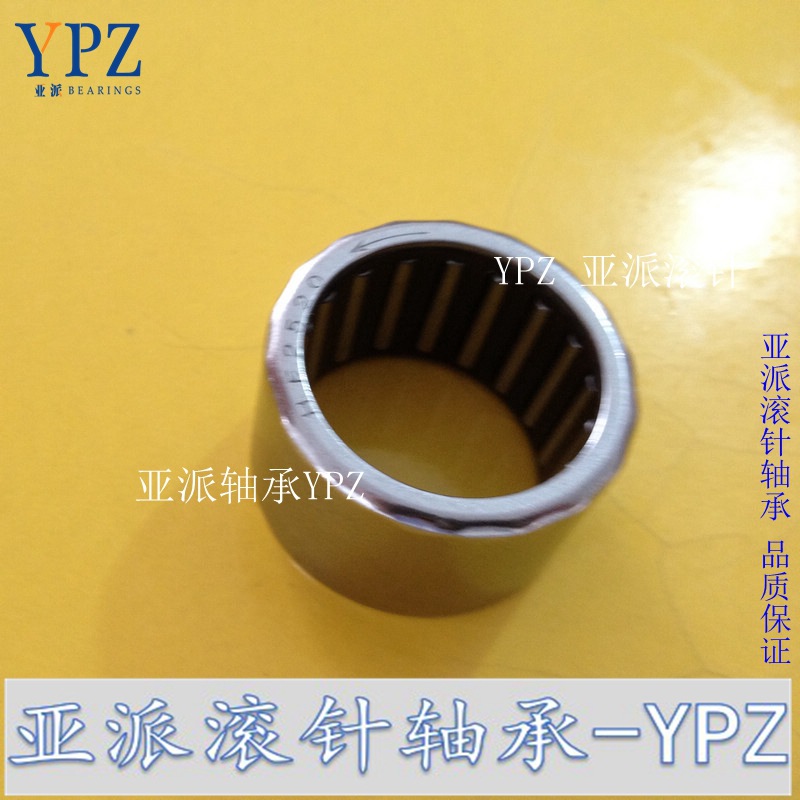

實物拍攝：
